How to configure the Module Linear Motor & Specialities of Multi-module Linear Motor with High Performance! Force Reference Chart

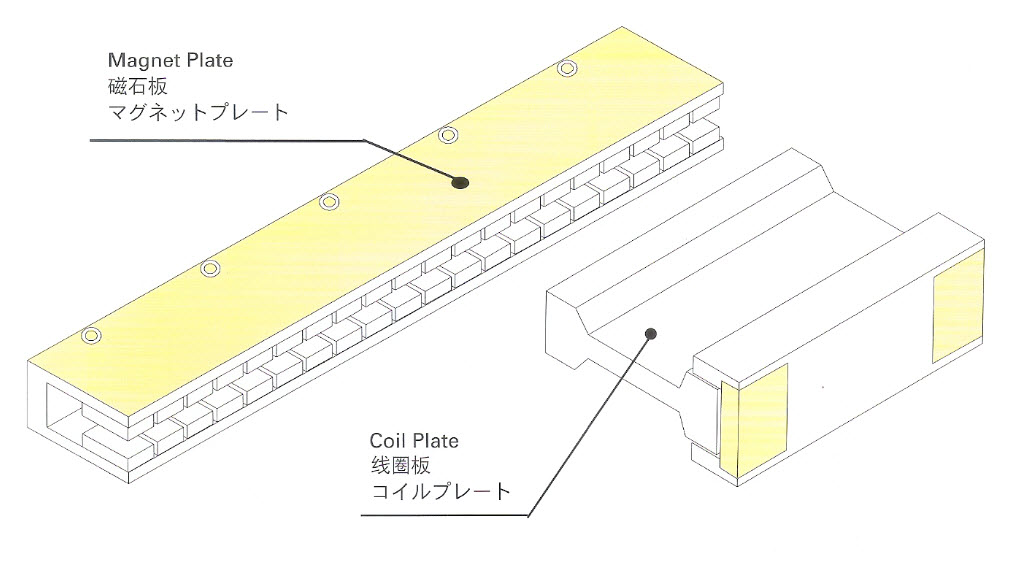

Flexible setting for performance : For Example, Double force will be gained by connecting two of multi-module which have a same forcer(coil-Plate) unit = results in double force

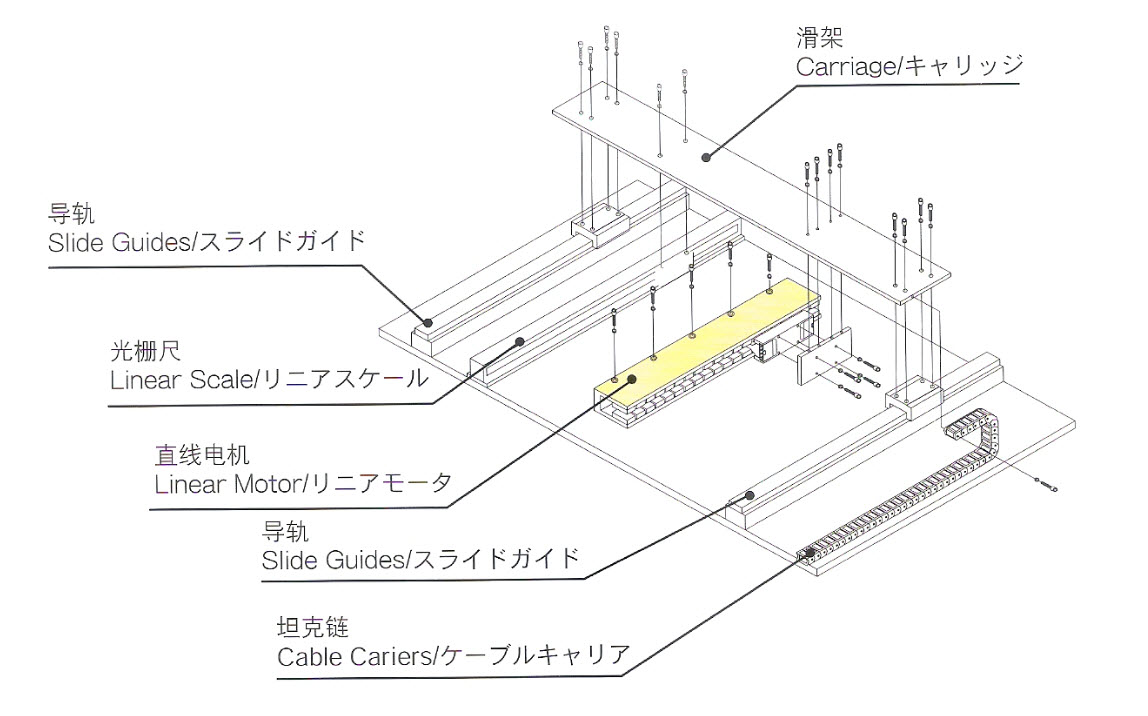

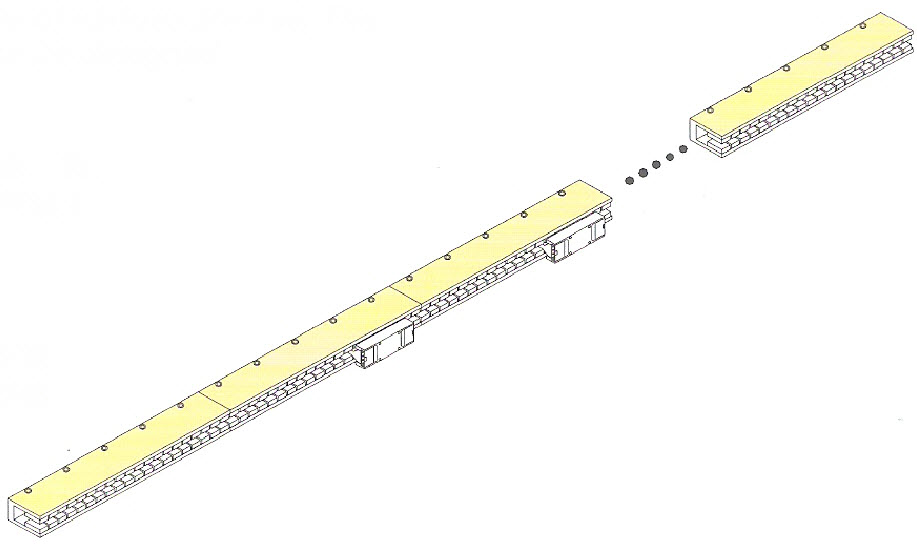

Various long strokes : modularized magnet plate meets usage of various stroke . The plural carriages on the single axis-X can be designed or other Axes as well .
High response performance : The best performance of mechanism can be gained by coreless coil and double both sides magnet which have no power of magnetic absorbtion . High accesleration _ high response characteristic are realized by moving-coil(forcer) which make it light and compact size. Smooth movement of driving with small ripple ( very less ripple force) is made possible by coreless coil and our matching sinousoidal drive(servo amplifier,vector,sine wave control ) that is cogingless ( no cogging)

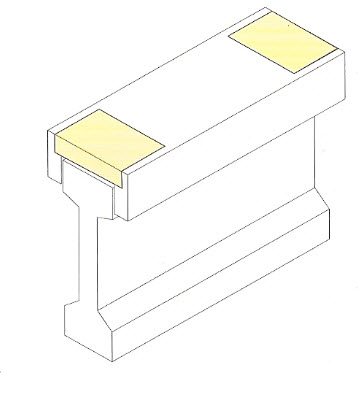

Horizontal putting :

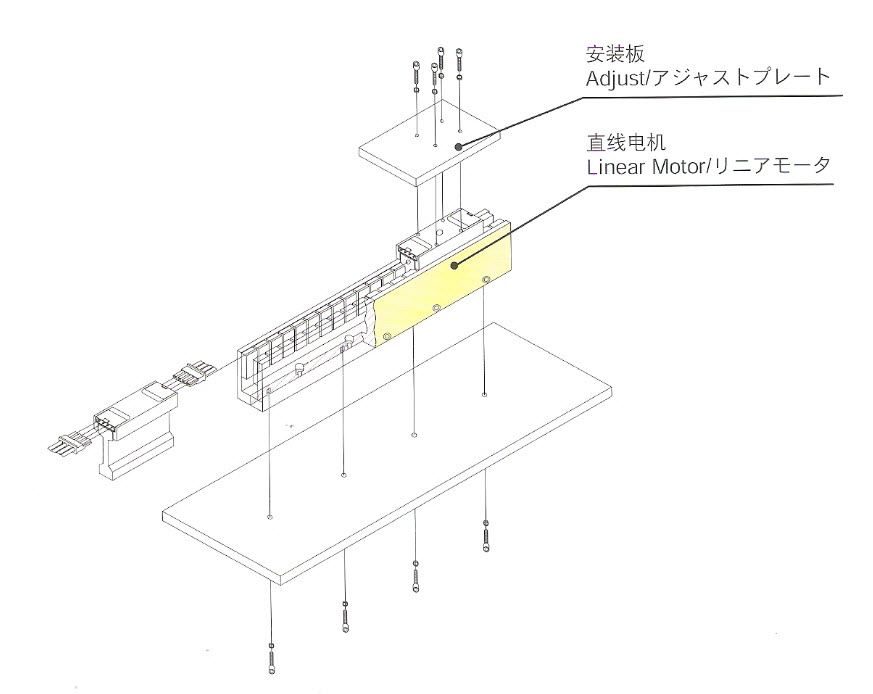

Length putting :

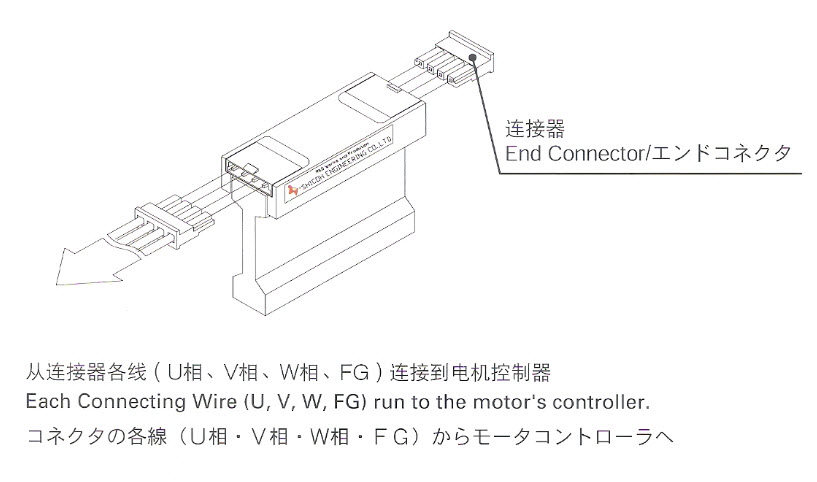

Connector details :

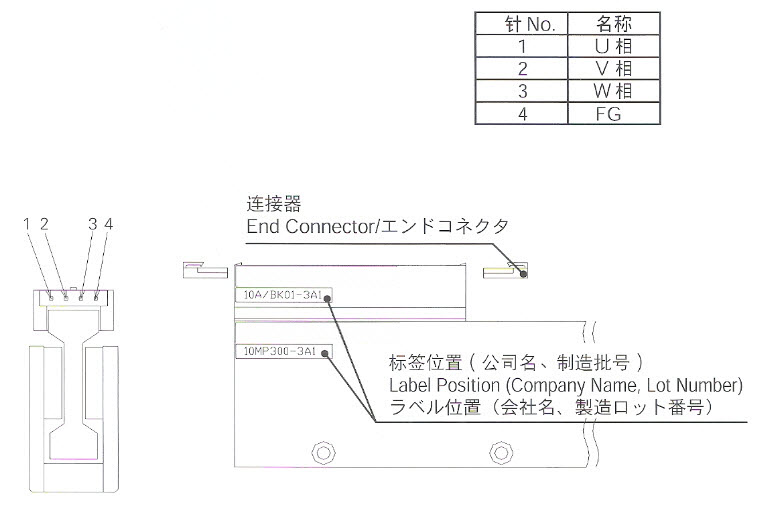

EACH CONNECTOR PIN ARRANGEMENT :

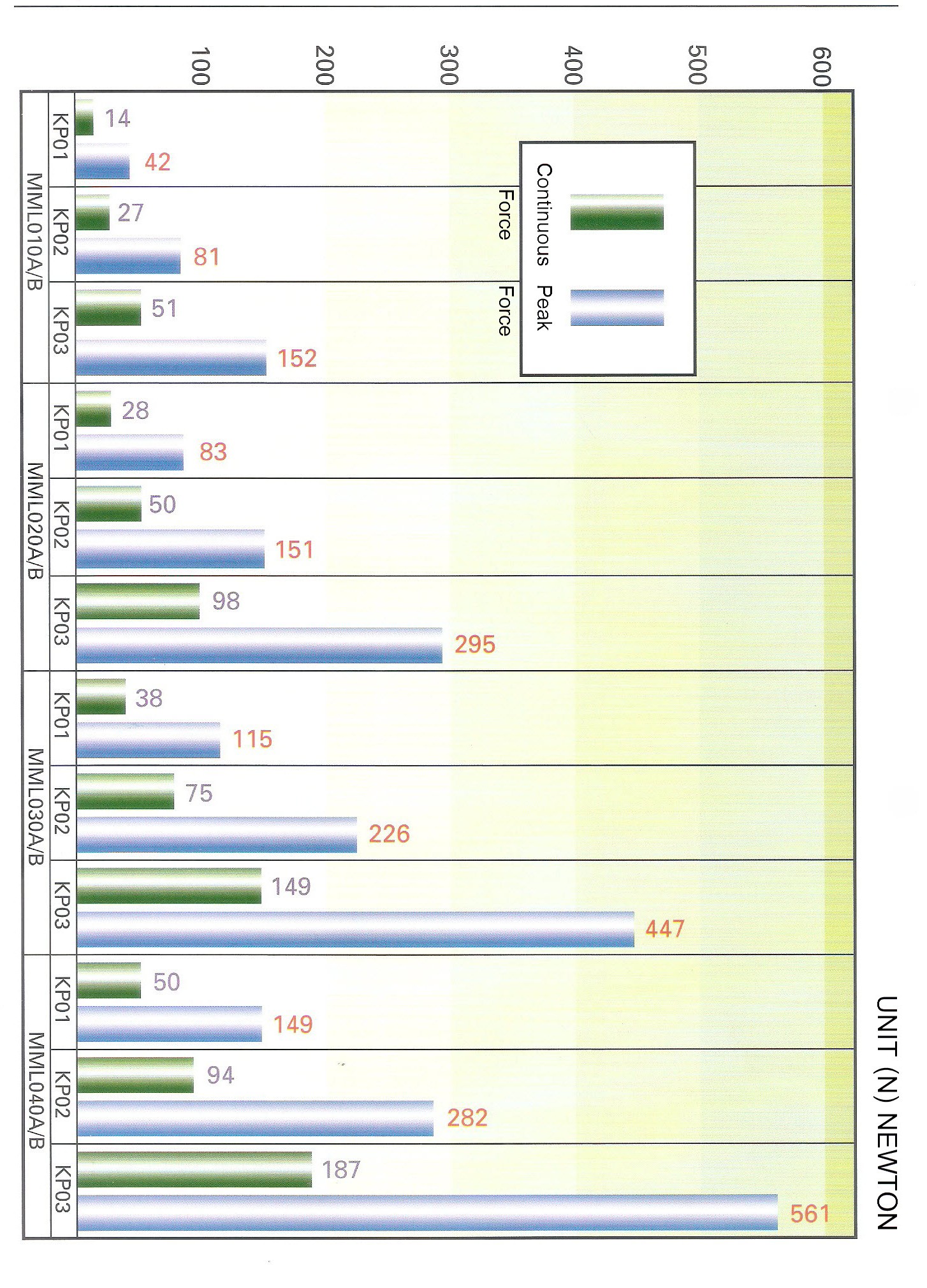

Force Reference Chart
|
